WiFi Shield 32U serial commands

The Arduino WiFi Shield has an FTDI compatible connector that enables you to get diagnostic information from the onboard ATmega 32U.

You can connect to the 32U with a FTDI cable :

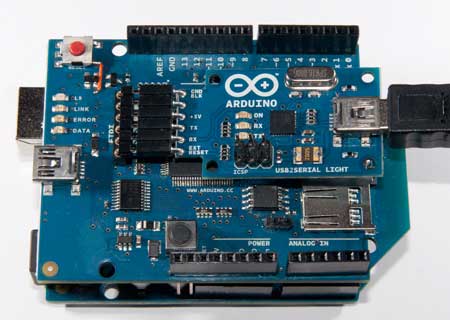

You can also use a USB2Serial board :
