SRFxx Sonic Range Finder Reader

This example shows how to read a Devantech SRFxx , an ultra-sonic range finder which communicates via the I2C synchronous serial protocol, using Arduino's Wire Library.

The I2C protocol involves using two wires to send and receive data: a serial clock pin (SCL) that the Arduino pulses at a regular interval, and a serial data pin (SDA) over which data is sent between the two devices. As the clock pulse changes from low to high (known as the rising edge of the clock), a bit of information containing the address of a specific device and a request for data, is transferred from the Arduino to the I2C devices over the SDA line. When the clock pin changes from high to low (the falling edge of the clock), the called upon device transmits it's data back to the Arduino over the same line.

Because the 12C protocol allows for each enabled device to have it's own unique address, and as both master and slave devices to take turns communicating over a single line, it is possible for your Arduino to communicate with many devices (in turn) while using just two pins of your microcontroller.

Hardware Required

  • Arduino Board
  • Devantech SRFxx Range Finder (models SRF02, SRF08, or SRF10, click to compare)
  • 1 100 uf capacitor
  • breadboard
  • hook-up wire

Circuit

Attach the SDA pin of your SRFxx to analog pin 4 of your Arduino, and the SCL pin to analog pin 5. Power your SRFxx from 5V, with the addition of a 100uf capacitor in parallel with the range finder to smooth it's power supply.

image developed using Fritzing. For more circuit examples, see the Fritzing project page

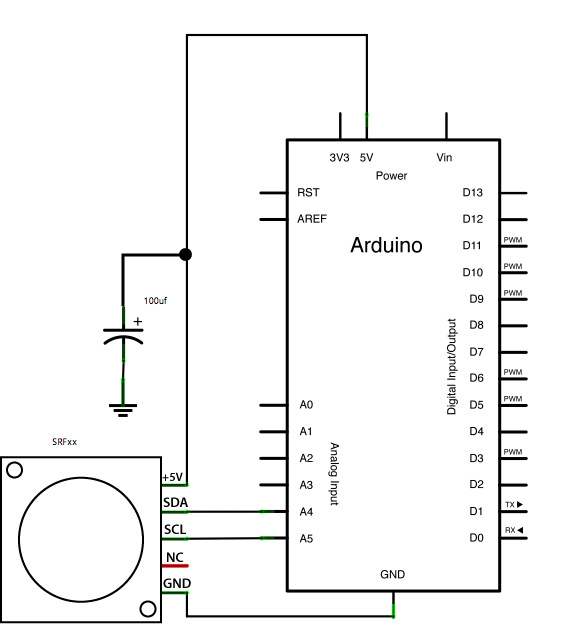

Schematic

Code

If using two SRFxxs on the same line, you must ensure that they do not share the same address. Instructions for re-addressing the range finders can be found at the bottom of the code below.

// I2C SRF10 or SRF08 Devantech Ultrasonic Ranger Finder
// by Nicholas Zambetti <http://www.zambetti.com>
// and James Tichenor <http://www.jamestichenor.net>

// Demonstrates use of the Wire library reading data from the
// Devantech Utrasonic Rangers SFR08 and SFR10

// Created 29 April 2006

// This example code is in the public domain.


#include <Wire.h>

void setup()
{
  Wire.begin();                // join i2c bus (address optional for master)
  Serial.begin(9600);          // start serial communication at 9600bps
}

int reading = 0;

void loop()
{
  // step 1: instruct sensor to read echoes
  Wire.beginTransmission(112); // transmit to device #112 (0x70)
                               // the address specified in the datasheet is 224 (0xE0)
                               // but i2c adressing uses the high 7 bits so it's 112
  Wire.write(byte(0x00));      // sets register pointer to the command register (0x00)
  Wire.write(byte(0x50));      // command sensor to measure in "inches" (0x50)
                               // use 0x51 for centimeters
                               // use 0x52 for ping microseconds
  Wire.endTransmission();      // stop transmitting

  // step 2: wait for readings to happen
  delay(70);                   // datasheet suggests at least 65 milliseconds

  // step 3: instruct sensor to return a particular echo reading
  Wire.beginTransmission(112); // transmit to device #112
  Wire.write(byte(0x02));      // sets register pointer to echo #1 register (0x02)
  Wire.endTransmission();      // stop transmitting

  // step 4: request reading from sensor
  Wire.requestFrom(112, 2);    // request 2 bytes from slave device #112

  // step 5: receive reading from sensor
  if(2 <= Wire.available())    // if two bytes were received
  {
    reading = Wire.read();  // receive high byte (overwrites previous reading)
    reading = reading << 8;    // shift high byte to be high 8 bits
    reading |= Wire.read(); // receive low byte as lower 8 bits
    Serial.println(reading);   // print the reading
  }

  delay(250);                  // wait a bit since people have to read the output :)
}


/*

// The following code changes the address of a Devantech Ultrasonic Range Finder (SRF10 or SRF08)
// usage: changeAddress(0x70, 0xE6);

void changeAddress(byte oldAddress, byte newAddress)
{
  Wire.beginTransmission(oldAddress);
  Wire.write(byte(0x00));
  Wire.write(byte(0xA0));
  Wire.endTransmission();

  Wire.beginTransmission(oldAddress);
  Wire.write(byte(0x00));
  Wire.write(byte(0xAA));
  Wire.endTransmission();

  Wire.beginTransmission(oldAddress);
  Wire.write(byte(0x00));
  Wire.write(byte(0xA5));
  Wire.endTransmission();

  Wire.beginTransmission(oldAddress);
  Wire.write(byte(0x00));
  Wire.write(newAddress);
  Wire.endTransmission();
}

*/
