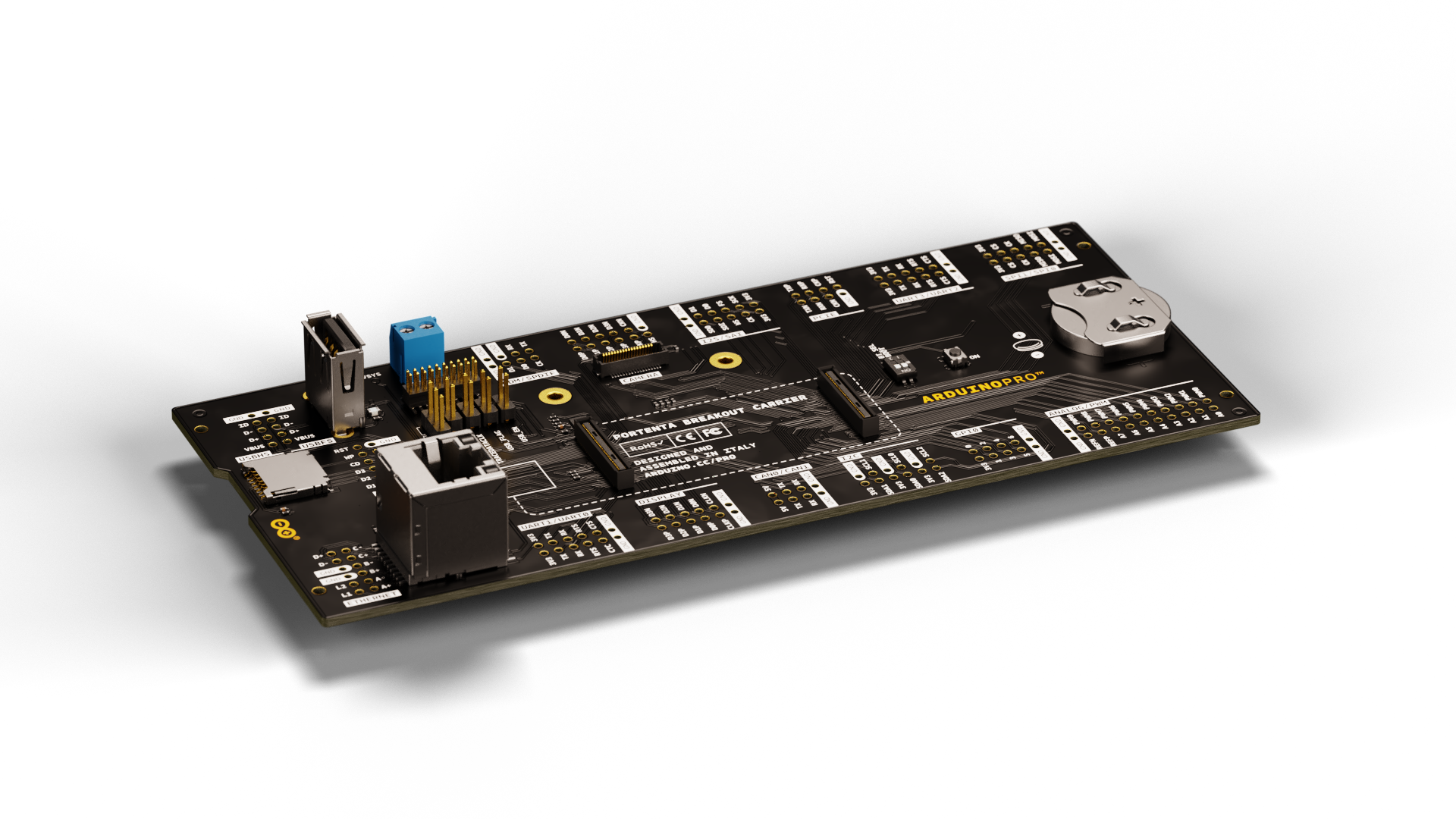

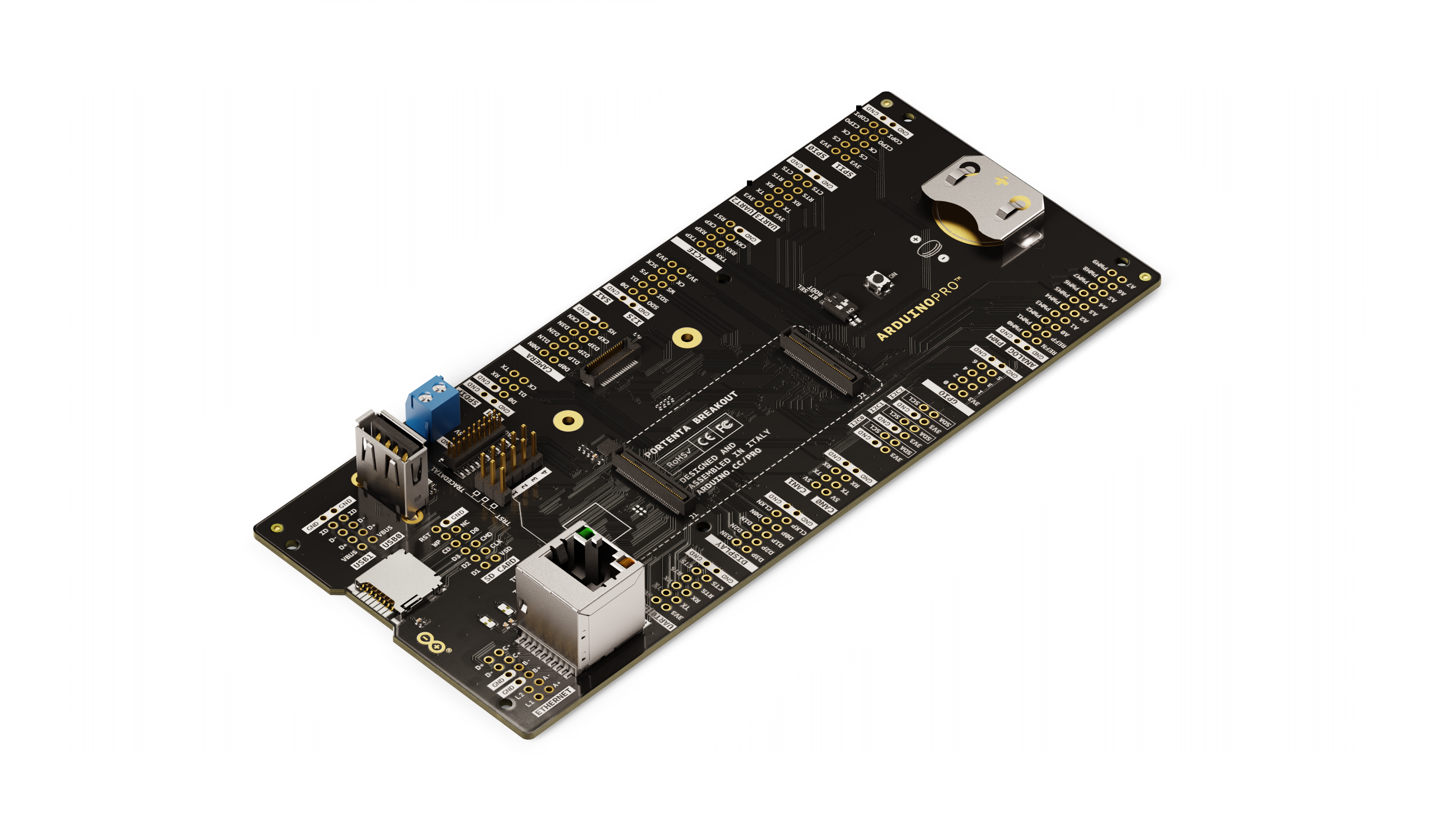

Portenta Breakout: a great tool for prototyping projects
Portenta Breakout: a great tool for prototyping projects

Designed for developing, testing, and debugging on Portenta family boards

Fast prototyping for fast integration.

The Portenta Breakout reduces development time for industrial grade solution automation based on the Portenta line.

Key features include:

  • Flexible usage
  • Ideal for software developers, service engineers and R&D engineers
  • Provides flexibility for measuring and controlling signals
  • Great starting point for engineering students
  • Great tool for testing devices connections and capacity
  • Compatible with high density connector

The Portenta Breakout can also act as a first point of entry for technical education of engineering in industrial grade control and embedded systems.

The Portenta Breakout allows for easy debugging through the JTAG connector and allows for inspection of the bus lines through the breakout pins. It makes all high density connectors’ signals individually accessible, making it quick and easy to connect and test external hardware components and devices as normally needed during development in the lab.

The Portenta Breakout features ethernet, USB and SD sockets, coin cell, power button, external power supply and configurable boot selection modes

Compatible with the Arduino Portenta H7. For more information and documentation on the Portenta Breakout visit the Arduino store.

DEBUG

JTAG Connector for easy debugging

CONNECTORS

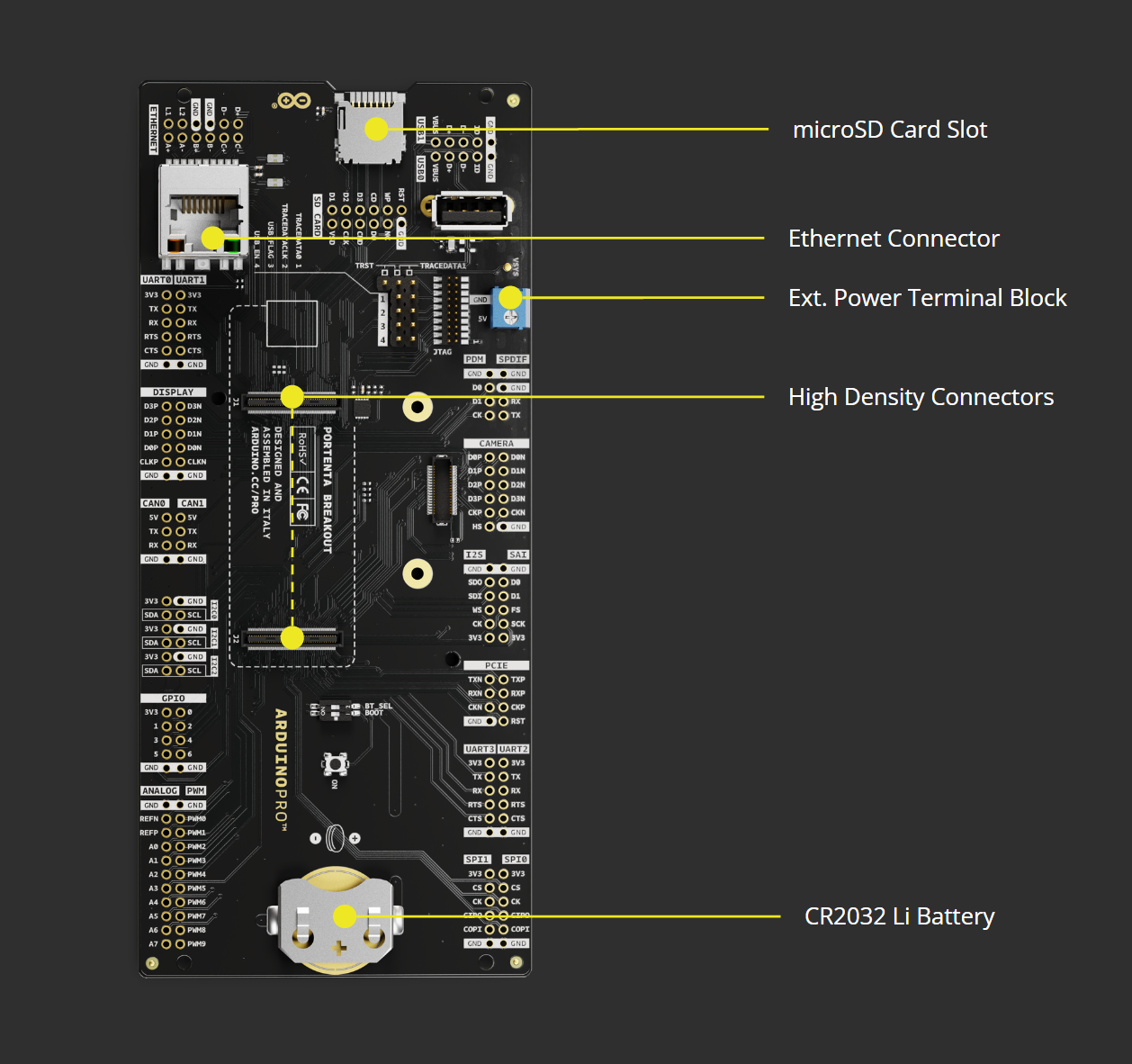

USBA RJ45 GBit - Ethernet microSD card MIPI 20T JTAG with trace capability

POWER

CR2032 RTC Lithium Battery backup External power terminal block

I/O

Access high density connectors individually Male/female HD connectors

Your helping hand within the Portenta family is here

Flexible and powerful tool to develop, test and debug using the Portenta family boards.

All I/O exposed plus ready-to-use connectors.

The Portenta Breakout allows the connection of additional shields to your Portenta H7 thanks to the high density connectors placed on the bottom.

Designed for developing, testing, and debugging on Portenta family boards

Compatible with the Arduino Portenta H7. For more information and documentation on the Portenta Breakout visit the Arduino store.

PORTENTA BREAKOUT TECH SPECS
WEIGHT 69 g
DIMENSIONS 72.12 mm x 163.94 mm (2.83 in x 6.45 in)
BATTERY/POWER CR2032 RTC Lithium Battery Backup; External power terminal block
NETWORK/CONNECTIVITY USB, RJ45 GBit Ethernet, microSD card, MIPI 20T JTaG with trace capability
MEMORY microSD Card slot
OPERATING TEMPERATURES -40 °C to +85 °C (-40 °F to 185 °F)
